Description
- adding timeline4 style with Team Section
- view demo – password: abc
- buy me a coffee if it is useful for you
#1. Install Code
#1.1. First you need to add Section

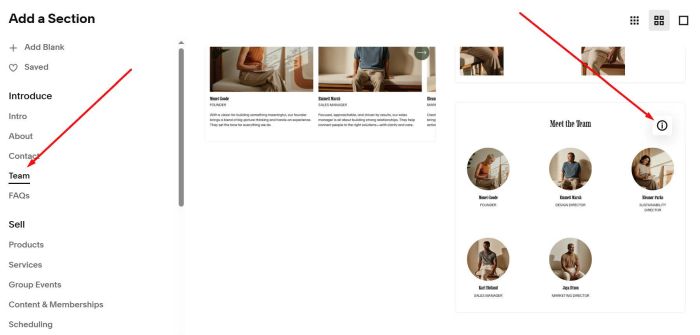

Choose Team > Choose section with (i) icon. You need to add 3 Team sections

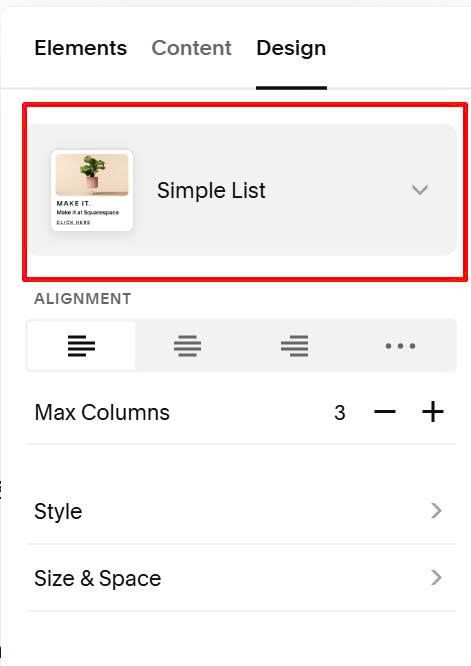

Make sure use Simple List
#1.2. Next, enable these options
add your desired text, image
#1.3. Hover on top right of section > click Edit Section
at Anchor Link, enter word: timeline4
#1.4. Hover on page where you added Team Section > Click Gear icon
Click Advanced > Paste this code
<!-- @tuanphan - Timeline4 -->
<style>
section[id*="timeline4"] .user-items-list {
display: none;
}
section[id*="timeline4"] .tp-timeline {
background: #fff;
color: #111;
width: 100%;
padding: 52px 16px 70px;
box-sizing: border-box;
}
section[id*="timeline4"] .tp-section-title {
text-align: center;
margin-bottom: 50px;
font-size: 2.5rem;
font-weight: 700;
color: #111;
}
section[id*="timeline4"] .tp-timeline__wrap {
position: relative;
max-width: 1100px;
margin: 0 auto;
display: flex;
flex-direction: column;
gap: 62px;
padding: 6px 0;
}
section[id*="timeline4"] .tp-line {
position: absolute;
left: 50%;
width: 2px;
background: #cfcfcf;
transform: translateX(-50%);
z-index: 0;
pointer-events: none;
}
section[id*="timeline4"] .tp-item {
position: relative;
display: grid;
grid-template-columns: 1fr 85px 1fr;
align-items: center;
min-height: 110px;
}
section[id*="timeline4"] .tp-left .tp-node {
grid-column: 1;
justify-self: end;
}
section[id*="timeline4"] .tp-left .tp-dot {
grid-column: 2;
justify-self: center;
}
section[id*="timeline4"] .tp-right .tp-dot {
grid-column: 2;
justify-self: center;
}
section[id*="timeline4"] .tp-right .tp-node {
grid-column: 3;
justify-self: start;
}
section[id*="timeline4"] .tp-dot {
width: 10px;
height: 10px;
border-radius: 999px;
background: #ff6a00;
position: relative;
z-index: 2;
}
section[id*="timeline4"] .tp-node {
width: 108px;
display: flex;
flex-direction: column;
align-items: center;
text-align: center;
transform: translateY(18px);
}
section[id*="timeline4"] .tp-icon {
width: 64px;
height: 64px;
border-radius: 999px;
object-fit: cover;
display: block;
}
section[id*="timeline4"] .tp-text {
margin-top: 10px;
width: 108px;
font-size: 14px;
line-height: 1.15;
letter-spacing: .2px;
font-weight: 700;
display: -webkit-box;
-webkit-line-clamp: 2;
-webkit-box-orient: vertical;
overflow: hidden;
word-break: break-word;
}
@media (max-width: 820px) {
section[id*="timeline4"] .tp-timeline {
padding: 44px 14px 58px;
}
section[id*="timeline4"] .tp-section-title {
font-size: 2rem;
margin-bottom: 35px;
}
section[id*="timeline4"] .tp-timeline__wrap {
gap: 54px;
max-width: 980px;
}
section[id*="timeline4"] .tp-item {
grid-template-columns: 1fr 59px 1fr;
min-height: 104px;
}
section[id*="timeline4"] .tp-node {
width: 104px;
transform: translateY(16px);
}
section[id*="timeline4"] .tp-icon {
width: 58px;
height: 58px;
}
section[id*="timeline4"] .tp-text {
width: 104px;
}
}
@media (max-width: 640px) {
section[id*="timeline4"] .tp-timeline__wrap {
gap: 44px;
}
section[id*="timeline4"] .tp-item {
grid-template-columns: 1fr 52px 1fr;
}
}
</style>
<script>
(()=>{const e='section[id*="timeline4"]',t=(e,t)=>{const n=e.getBoundingClientRect(),i=t.getBoundingClientRect();return n.top-i.top+n.height/2},n=(e,n)=>{const i=e.querySelectorAll(".tp-dot");if(i.length<2)return;const o=t(i[0],e),r=t(i[i.length-1],e),c=Math.round(o),l=Math.max(2,Math.round(r-o));n.style.top=c+"px",n.style.height=l+"px"},i=()=>{const t=document.querySelector(e);if(!t)return;const i=(e=>{const t=e.querySelector("ul.user-items-list-item-container");return t?Array.from(t.querySelectorAll("li.list-item")).map((e=>{const t=e.querySelector(".list-item-content__title"),n=e.querySelector("img.list-image");return{title:(t?t.textContent:"").trim(),image:(i=n,i&&(i.getAttribute("data-src")||i.getAttribute("data-image")||i.getAttribute("src"))||"")};var i})).filter((e=>e.title||e.image)):[]})(t);i.length&&((e,t)=>{if(document.body.classList.contains("sqs-edit-mode"))return;const i=e.querySelector(".tp-timeline");i&&i.remove();const o=e.querySelector(".list-section-title"),r=o?o.textContent.trim():"",c=document.createElement("div");if(c.className="tp-timeline",r){const e=document.createElement("h2");e.className="tp-section-title",e.textContent=r,c.appendChild(e)}const l=document.createElement("div");l.className="tp-timeline__wrap";const a=document.createElement("div");a.className="tp-line",a.setAttribute("aria-hidden","true"),l.appendChild(a),t.forEach(((e,t)=>{const n=t%2==0?"tp-left":"tp-right",i=document.createElement("div");i.className=`tp-item ${n}`;const o=document.createElement("span");o.className="tp-dot";const r=document.createElement("div");r.className="tp-node";const c=document.createElement("img");c.className="tp-icon",c.src=e.image||"";const a=document.createElement("div");a.className="tp-text",a.textContent=e.title||"",r.appendChild(c),r.appendChild(a),"tp-left"===n?(i.appendChild(r),i.appendChild(o)):(i.appendChild(o),i.appendChild(r)),l.appendChild(i)})),c.appendChild(l);const d=e.querySelector(".content")||e.querySelector(".content-wrapper")||e,s=e.querySelector(".user-items-list");let m;s?s.parentNode.insertBefore(c,s):d.appendChild(c),requestAnimationFrame((()=>requestAnimationFrame((()=>n(l,a))))),window.addEventListener("resize",(()=>{clearTimeout(m),m=setTimeout((()=>n(l,a)),120)}));const u=c.querySelectorAll("img.tp-icon");let p=u.length;if(p>0){const e=()=>{p--,p<=0&&n(l,a)};u.forEach((t=>{t.complete?e():(t.addEventListener("load",e,{once:!0}),t.addEventListener("error",e,{once:!0}))}))}})(t,i)};let o=0;const r=()=>{const t=document.querySelector(e);t&&t.querySelector("li.list-item")?i():o<30&&(o++,setTimeout(r,300))};"loading"===document.readyState?document.addEventListener("DOMContentLoaded",r):r(),window.addEventListener("load",r),document.addEventListener("mercury:load",r)})();
</script>
#2. Customize
#2.1. To change image style, find these
section[id*="timeline4"] .tp-icon {
width: 64px;
height: 64px;
border-radius: 999px;
object-fit: cover;
display: block;
}
#2.2. To change text style, find these
section[id*="timeline4"] .tp-text {
margin-top: 10px;
width: 108px;
font-size: 14px;
line-height: 1.15;
letter-spacing: .2px;
font-weight: 700;
display: -webkit-box;
-webkit-line-clamp: 2;
-webkit-box-orient: vertical;
overflow: hidden;
word-break: break-word;
}
#2.3. To change dot style, find these
section[id*="timeline4"] .tp-dot {
width: 10px;
height: 10px;
border-radius: 999px;
background: #ff6a00;
position: relative;
z-index: 2;
}
#2.4. To change gray vertical line style, find these
section[id*="timeline4"] .tp-line {
position: absolute;
left: 50%;
width: 2px;
background: #cfcfcf;
transform: translateX(-50%);
z-index: 0;
pointer-events: none;
}
